Quantity
Price
Total price
1
$1.2810
$1.2810
10
$1.0500
$10.5000
100
$0.8085
$80.8500
500
$0.6930
$346.5000
1000
$0.5565
$556.5000
6000
$0.5040
$3,024.0000
9000
$0.4830
$4,347.0000
| TYPE | DESCRIPTION |
| Mfr | Vishay / Siliconix |
| Series | TrenchFET® Gen IV |
| Package | Tape & Reel (TR) |
| Product Status | ACTIVE |

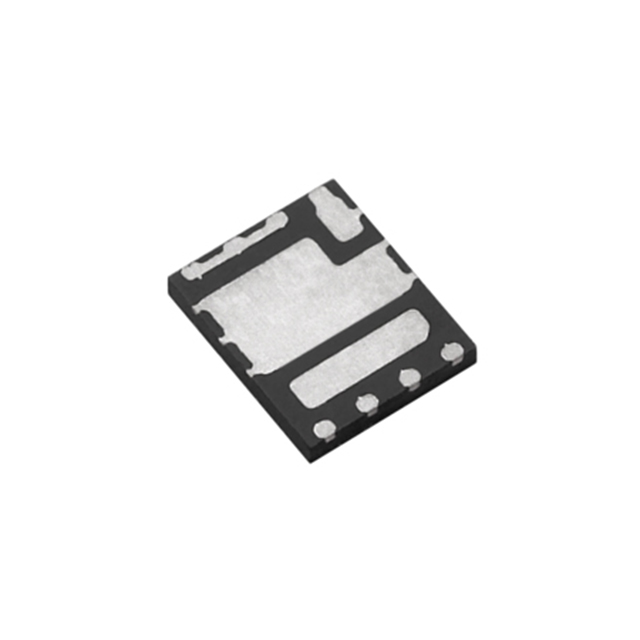

| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 3.8W (Ta), 48W (Tc), 4.3W (Ta), 74W (Tc) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Ta), 75A (Tc), 34A (Ta), 141A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1100pF @ 15V, 3150pF @ 15V |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 10A, 10V, 1.84mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 22nC @ 10V, 62nC @ 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 8-PowerPair® (6x5) |
