Quantity
Price
Total price
1
$1.7850
$1.7850
3000
$0.8085
$2,425.5000
6000
$0.7770
$4,662.0000
9000
$0.7455
$6,709.5000
| TYPE | DESCRIPTION |
| Mfr | Alpha and Omega Semiconductor, Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | OBSOLETE |

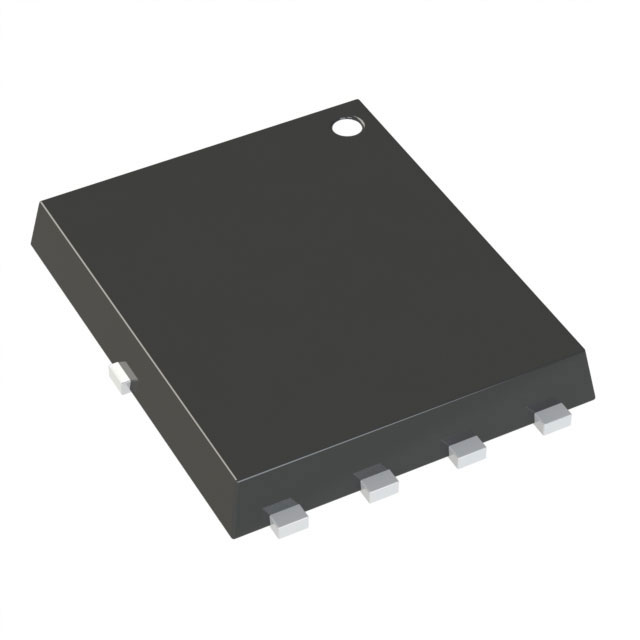

| Package / Case | 8-PowerSMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 31A (Ta), 85A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.4mOhm @ 20A, 10V |
| Power Dissipation (Max) | 2.3W (Ta), 83W (Tc) |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 8-DFN (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 170 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 8300 pF @ 15 V |
